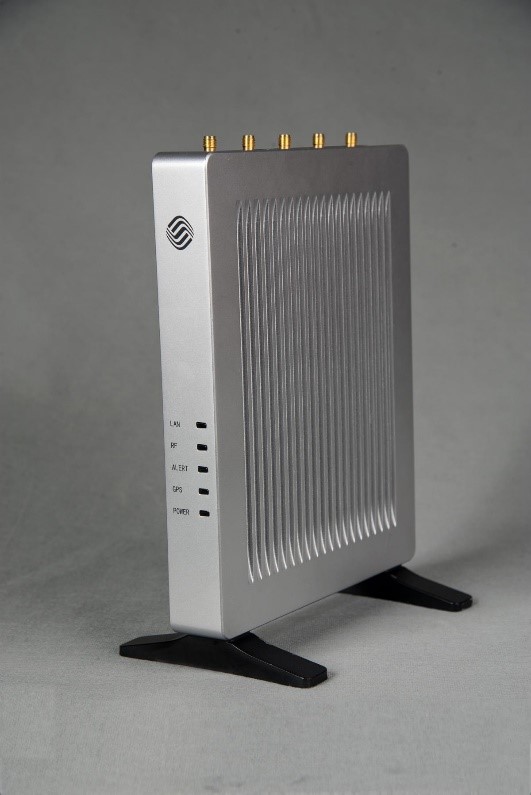

M2012dual-mode base station
M2012enterprise-level TDS/TDL dual-mode base station is a small environment-friendlyradio device integrated the functions of TD-SCDMA microcell base station andTD-LTE microcell base station. It accesses the mobile core network viafixed-line broadband. With the features of self-configuration,self-optimization and plug & play, it can provide clients with standardTD-LTE and TD-SCDMA wireless broadband services.

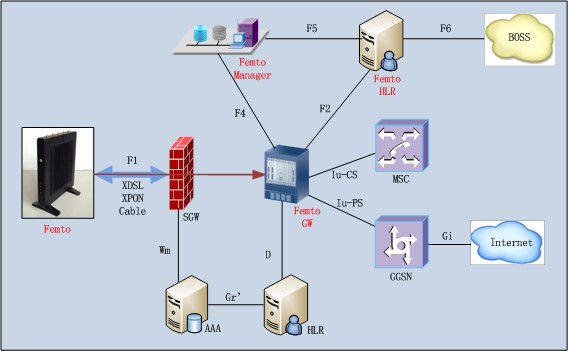

1) Networktopology of small base station
2) Servicecapability
Support24 TD-SCDMA users (16 HSDPA users, +8CS voice users or 14 CS voice users) andTD-LTE users (maximum download rate up to 100Mbps).
Managementability
TR069remote alarm, power control and software upgrades
2G, 3G, 4Ginteroperability
Supportvertical handoff from Femto cell to macro cell; support mutual reselectionbetween Femto cell and macro cell;
SupportCSFB;
Supportfast return synchronization
Supportempty synchronization, 1588 synchronization and GPS synchronization
Specifications
| No. | Name | Parameter | Index |
| 1 | Network parameter |
| Auto-optimization, Power-on self-test |
| 2 | Cell performance | Number of carriers | 3 |
| 3 | Maximum cell radius | ≤1000m （visual range） | |
| 4 | Maximum UE rate | 10km/h | |
| 5 | RF characteristics | Band | TDS: 1880～1920MHz / 2010～2025MHz， TDL: 2320～2370MHz |
| 6 | Maximum output power | 24dBm（TDS）；2X21dBm（TDL） | |
| 7 | Antenna | TD:1；3dBi; TDL:4， 3dBi | |
| 8 | Electrical characteristics | External power supply | 48V DC （support POE+：25 W） |
| 9 | Average power consumption | 25W（1 TDS+1 TDL）；30W（1 TDS+2 TDL） | |
| 10 | Size and weight | Dimension | 219X117X30mm |
| 11 | Weight | 1300g | |
| 12 | Others | Working condition | Temperature：-5～45 ℃， Humidity：10～90% |
| 13 | LED indication | POWER/WIFI/FAP/WAN/LAN |
